Shelly Plus Add-on

Shelly Smart Home

SKU: FG3800235266427

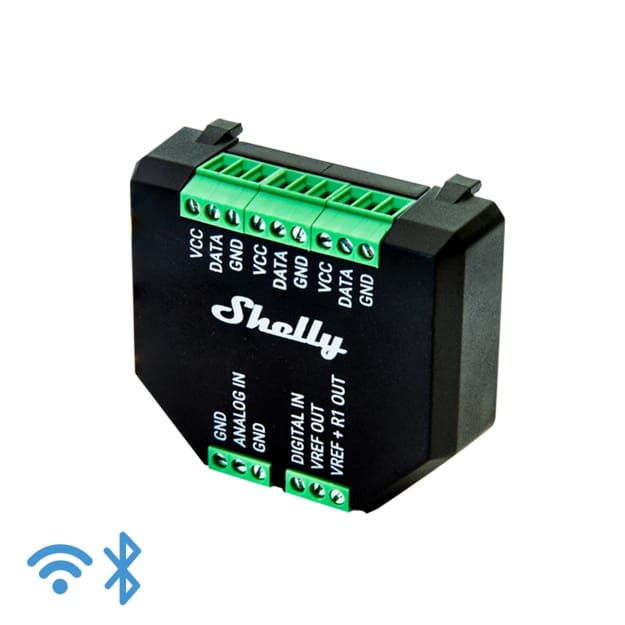

Shelly Plus Add-on

Price range: 15.000 JOD through 21.000 JOD

3 Years Manufacturer Warranty

Shelly Plus AddOn

Request information
  • Shelly Plus AddOn

Reference

Technical specifications

Every value below is sourced from the manufacturer datasheet. Engineering-first hardware, documented down to the last gram.

01

Physical

  • Size (HxWxD)
    37x42x15 ±0.5 mm / 1.46 x 1.65 x 0.59 ±0.02 in
  • Weigh
    105 g / 3.70 oz
  • Shell material
    Plastic
  • Screw terminals max torque
    0.1 Nm / 0.89 lbIn
  • Conductor cross section
    max. 1 mm² / 17 AWG
  • Conductor stripped length
    4.5 mm / 0.18 in
  • Color
    Black
02

Environmental

  • Ambient temperature
    -20 °C to 40 °C / -5 °F to 105 °F
  • Humidity
    30 % to 70 % RH
  • Max. altitude
    2000 m / 6562 ft
03

Electrical

  • Power supply voltage AC
    N/A
  • Power supply voltage DC
    3.3 V (from Shelly plus device)
  • Power consumption
    < 0.5 W (without sensors)
04

Output circuits ratings

  • VCC max. current
    10 mA
  • VREF OUT max. current
    1 mA
  • VREF+R1 OUT resistor
    10 kΩ
05

Shelly Plus device firmware capabilities

  • Shelly Plus Addon supporting devices
    Shelly Plus devices:

  • -Shelly Plus 1/1PM

  • -Shelly Plus 2PM

  • -Shelly Plus i4/i4DC

  • -Shelly Plus 0-10V Dimmer PM

  • -Shelly Plus RGBW PM

  • Shelly Gen3 devices:

  • -Shelly 1/1PM Gen3

  • -Shelly i4/i4DC Gen3

  • -Shelly Dimmer 0/1-10V PM Gen3
  • Temperature reading
    Depends on the DS18B20 or DHT22 sensors
  • Humidity reading
    Depends on the DHT22 sensor
  • Digital input
    -15 V to 0.5 V (True) / 2.5 V to 15 V (False)*
  • Analog input range
    0 to 100%
  • Analog input report threshold
    1%**
  • Voltmeter range
    0 to 10 V
  • Voltmeter report threshold
    0.1 V**
  • Analog input / Voltmeter accuracy
    Better than ±5%
